Connecting a Pattern Generator to Calman

August 3, 2020

Steps to connect a supported Pattern Generator to Calman

calman connect a pattern generator

Steps

  1. For a hardware test pattern generator, connect the generator to a control port on the Calman computer.
  2. On the Source Settings tab, click the Find Source button.

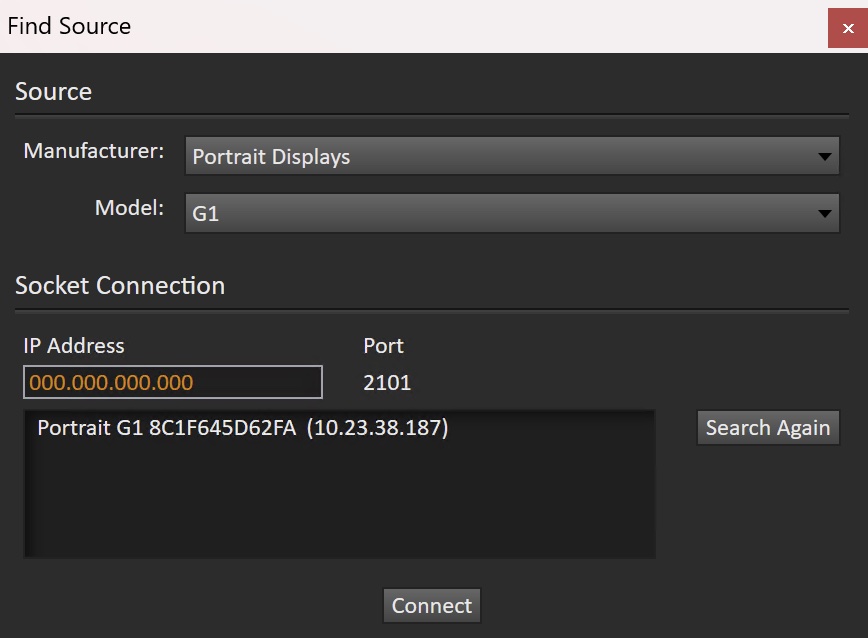

  3. On the Find Source dialog, select the Manufacturer and Model of your test pattern source device.
  4. Select the Com Port, if appropriate.
  5. Click Connect.
